cUTS CONFIGURATOR

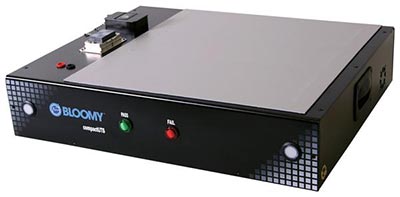

Use this form to configure your compactUTS™ functional tester

1 Power Supplies 2 Communications 3 Options 4 Contact 5 Review 6

Power Supply Selections:

(From Table 1)

PS1 *

PS1 Other

Size

(From Table 1)

PS2 *

PS2 Other

Size

(From Table 1 or Table 2)

PS3 *

PS3 Other

Size

Total size

(13 maximum)

Cumulative power supply size not to exceed 13 units.

Table 1: Single Output Power Supply Options

Option ID	Voltage	Current	Watts	Voltage Adj	Size
X	NO POWER SUPPLY				0
051	5 V	1.5 A	7.5 W	N/A	1
053	5 V	3 A	15 W	5 - 5.5	3
121	12 V	0.8 A	10 W	N/A	1
122	12 V	2.1 A	30 W	12 - 14	3
124	12 V	4.5 A	60 W	12 - 14	4
151	15 V	0.65 A	10 W	N/A	1
152	15 V	2 A	30 W	13.5 - 16.5	3
154	15 V	4 A	60 W	13.5 - 16.5	4
240	24 V	0.4 A	10 W	N/A	1
241	24 V	1.3 A	30 W	24 - 28	3
242	24 V	2.5 A	60 W	24 - 28	4
244	24 V	4.2 A	100 W	24 - 28	5
Z	Custom/other: specify (Price indicated above may be revised based on custom requirements.)

Table 2: Dual Output Power Supply Options

Option ID	Voltage	Current Per Side	Watts Per Side	Voltage Adj	Size
D051	+/- 5 V	1.5 A	7.5 W	N/A	2
D121	+/- 12 V	0.8 A	10 W	N/A	2
D122	+/- 12 V	2.1 A	30 W	12 - 14	6
D151	+/- 15 V	0.65 A	10 W	N/A	2
D152	+/- 15 V	2 A	30 W	13.5 - 16.5	6
D240	+/- 24 V	0.4 A	10 W	N/A	2
D242	+/- 24 V	1.3 A	30 W	24 - 28	6
Z	Custom/other: specify (Price indicated above may be revised based on custom requirements.)
