EnergyMAX

EnergyMAXAdvanced power monitoring and control

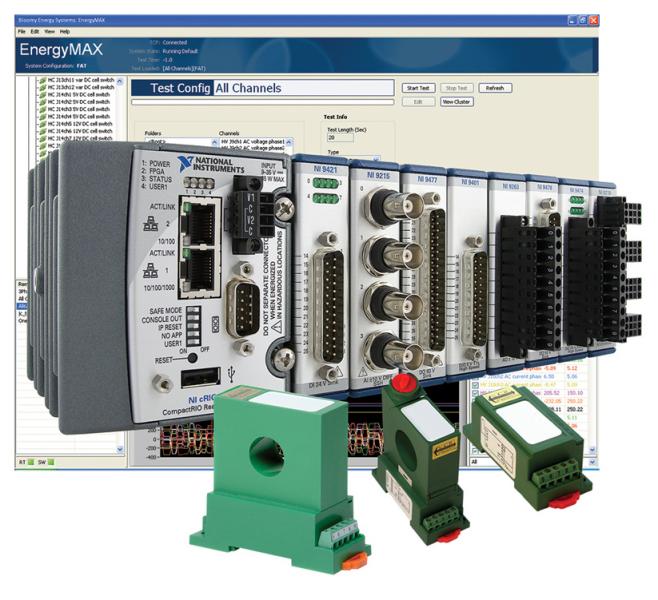

EnergyMAX is a real-time power-monitoring system ideally suited for AC and DC subsystem applications. The EnergyMAX power-monitoring system applies IEC 61000-4-30 standards for power quality measurements, and offers advanced analytic capabilities including voltage harmonics, dips, swells, and unbalanced phases. EnergyMAX provides easy integration of additional I/O such as DNP3 and Modbus communications, digital I/O, or temperature and vibration sensors to complete a full monitoring system. Features include:

  • Portable and permanent installations
  • Single- and three-phase AC power monitoring
  • High voltage DC circuit monitoring
  • Custom voltage and current measurement ranges
  • 20kS/s/ch simultaneous waveform acquisition
  • Options for control I/O, communications, and memory

Utilities and energy companies around the world are working towards improving power efficiencies, but first they need to understand and monitor the power with more sophistication.  General power quality meters are too slow to capture transients or synchronize data to understand a complete system. EnergyMAX is a distributed real-time power-monitoring system designed to easily integrate into common AC and DC systems. Some common applications include:

  • On board control and monitoring for energy storage systems
  • Energy storage system installation verification
  • Asset and machine monitoring
  • Smart grid component control and monitoring



The wide range of configurable measurement capabilities makes EnergyMAX a standard system for smart grid and energy storage monitoring. The following example shows EnergyMAX connected to a solar panel energy storage application.

The following is a typical configuration for a single EnergyMAX distribution location; multiple measurement locations can be synchronized. Higher voltage and current ranges, or customized channels are available.

AC Voltage
3-phase connectionDelta or Wye
Channel sets2
Voltage Range400Vrms L-N, 800 Vrms L-L
Overvoltage withstand1000Vrms for 1sec
Surge withstand5kV for 100uS
Accuracy0.05% reading + 0.012% range

AC Current
3-phase connectionDelta or Wye
Channel sets2
CT typeRogowski Coils
Current Range250 – 5000Arms
Linear Accuracy± 1%
Phase Angle< 0.5°
Bandwidth14.5kHz
Isolation5kV

DC Voltage
Channels2 differential
Voltage Range0 - 1000V
Accuracy± 0.5%
BandwidthDC to 25kHz
Surge withstand5KV

DC Current
Channels2 differential
CT typeOpen-loop Hall effect
Current Range200 – 2000Arms
Accuracy± 1%
BandwidthDC to 6kHz
Isolation5kV

Temperature
Channels16
Thermocouple typesJ, K, T types
Accuracy± 0.5°C

Communications
Supported ProtocolsModbus, DNP 3.0, IEC 61850

Synchronization
SupportedGPS, IEEE-1588, NI-Sync
