Portable and rugged power monitoring and analysis of on-Soldier equipment
The eSoldier Power Monitoring System, developed in cooperation of the US ARMY DEVCOM Soldier Center, is a compact, rugged acquisition logging and analysis system for evaluating the power consumption or power generation of Soldier-borne equipment in situ, during field exercises or other real-time events. The system is designed to facilitate easy, unobtrusive sensor data capture through its lightweight compact design and integration of wireless and wired sensor modules.

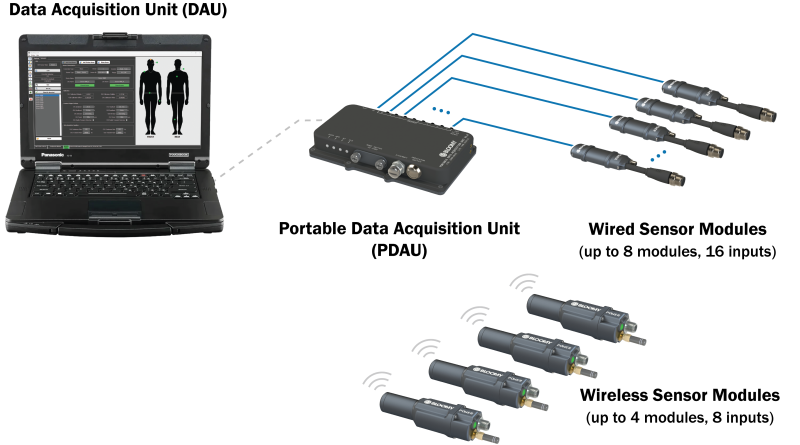

The system consists of a core portable data acquisition unit (PDAU), which acquires measurement data from a variety of wired and wireless sensor modules. Sensor modules are available to measure voltage, current, temperature, acceleration, and digital inputs. In addition, a GPS antenna can be connected directly to the PDAU for logging location data.
The PDAU can operate either in a standalone mode or in a real-time cabled mode. Easy-to-use software provides an intuitive user interface to configure the system, download and interactively playback all logged data, as well as to display real-time measurement data when operating in cabled mode.
- Compact, rugged (IP67) system for on-Soldier logging of power data
- Wireless and wired sensor modules for acquisition of power, temperature, acceleration, and digital data
(customizable for additional sensor types – contact Bloomy for more information) - Acquire continuous data at up to 1 kS/s and transient data at 100 kS/s
- Data acquisition software simplifies system setup and provides intuitive visualization of acquired data
e-Soldier is the only power monitoring system designed to unobtrusively and accurately capture real energy usage of Soldier-borne devices and equipment during simulation and field exercises. The miniature e-Soldier system is rugged, lightweight, and utilizes distributed wired and wireless sensor nodes to capture critical electrical power and sensor data from multiple devices worn and carried by a Soldier. Easy-to-use software provides intuitive interfaces to collect, manage, and visualize the acquired data.
| COMPONENT | DESCRIPTION |
|---|---|
Portable Data Acquisition Unit (PDAU)  | Standalone base controller, acquires and logs data from wireless and wired sensor modules. The PDAU can acquire data from up to 4 wireless sensor modules and up to 8 wired sensor modules, as well as live GPS data. |

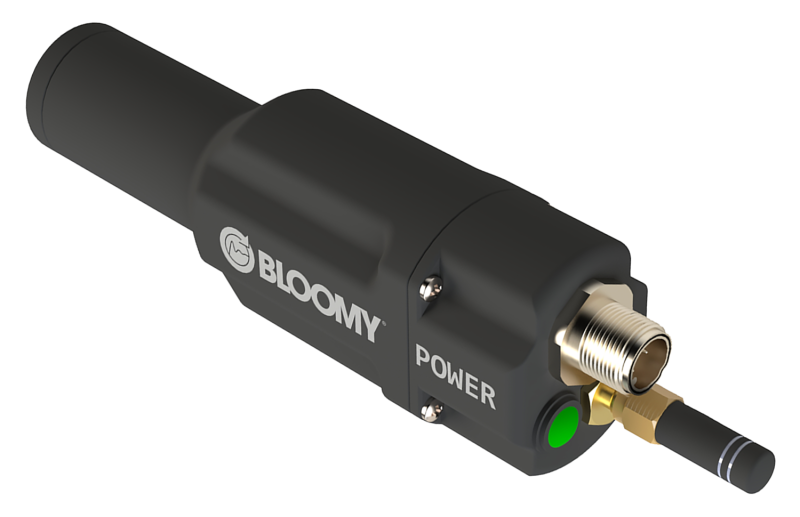

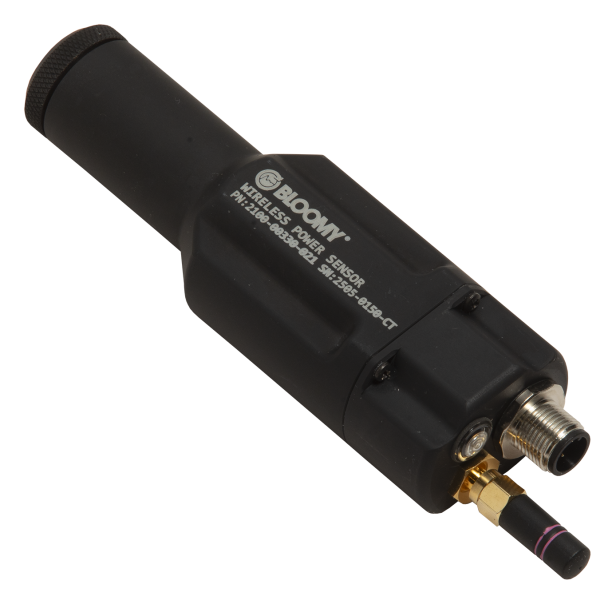

Wireless Sensor Module - Power  | Wireless sensor module to acquire power data (1 voltage input and 1 current input). Communicates data wirelessly to PDAU. |

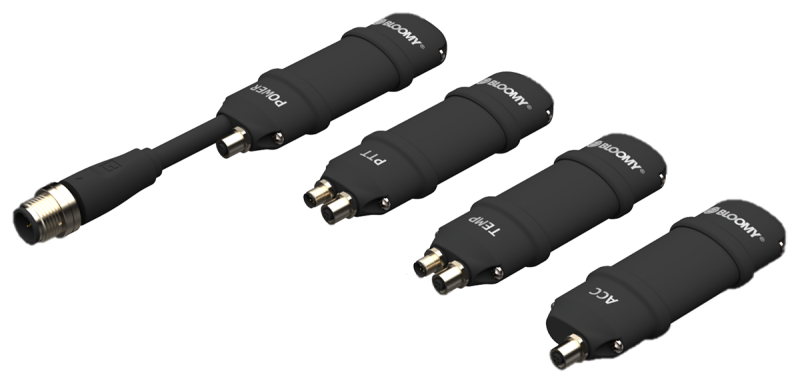

Wired Sensor Modules  | Wired sensor modules cable directly to an input port on the PDAU. Wired sensor modules are available for:
|
| Power Sensor Nodes (Wired and Wireless) | |
|---|---|
| Measurements | 1 voltage input 1 current input |
| Voltage Input Range | 0 - 6 V, 0 - 24 V, or 0 - 42V |
| Current Input Range | Unidirectional: Bidirectional: |
Accuracy* | 0.1% (24 V range) 0.3% (5 A range) |
| I/O Connector | M12 (adapter cables available) |
| Wireless Connectivity | Bluetooth LE |
| Battery (Wireless Module) | CR123A (replaceable) or RCR123A (rechargeable) |
* Typical accuracy for 22°C + 7°C
| Accelerometer Sensor Module | |
|---|---|
| Measurements | X and Y axis acceleration |
| Measurement Range | 16 g |
| Sensitivity | 57 mV/g |
| Bandwidth | 500 Hz |
| Temperature Sensor/Input Modules | ||
|---|---|---|
Sensor Module | Input Module | |
| Built-in Sensor | RTD, PT1000 | - |
| External Sensor Inputs | 1 input, RTD, PT1000 (2-, 3-, or 4-wire) | 2 inputs, RTD, PT1000 (2-wire) |
| Built-in Sensor | ||
| Measurement Range | -40 to 185°C | |
| External Sensor Inputs | ||
| External Sensor Range | -200 to 200°C | |
| Sensor Excitation | 570 μA | |
| Sensor Input Connector | M5 (adaptor cables available) | |
| Digital Input Module | |
|---|---|
| Input | Digital 5 V logic |
| I/O Connector | M5 (adapter cables available) |

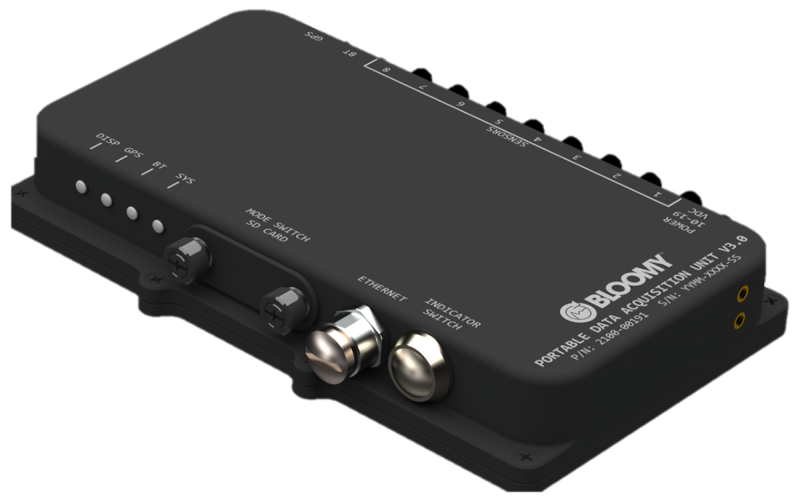

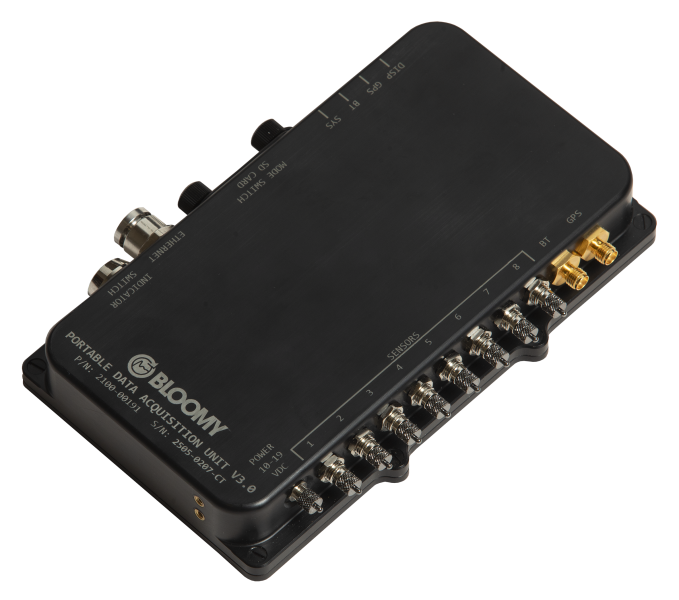

| Portable Data Acquisition Unit (PDAU) | |
|---|---|
| Wired Sensor Ports | Up to 8 (16 parameters) Connected via M5 cables (3 ft std.) |
| Wireless Sensors | Up to 4 (8 parameters) Connected via Bluetooth 5.0 |
| Acquisition Rate (all sensor modules) | Continuous: up to 1 kS/s Transient mode: up to 100 kS/s |
| A/D Resolution | 16 bits |
| Integrated GPS Receiver | External antenna connected via SMA connector Latitude, longitude, altitude, and time data |
| Onboard Data Storage | Removable microSD card |
| Connection to PC | Ethernet (M12 to RJ45 adapter cable) |
| Power | 10 - 19 VDC Approx. 5 W peak |
| Power Connector | M5 (adapter cables available) |
| Environmental and Mechanical | ||||
|---|---|---|---|---|
| Dimensions | 6.9" x 4.5" x 1.1" | 3.2" x 1.1" x 0.7" | 6.1" x 1.6" x 1.2" | |
| Weight | 17 oz. | 2 oz. | 6 oz. | |
| Temperature Range | -25 to 50°C | -40 to 80°C | -40 to 80°C | |
| Ingress Protection | IP67 | |||
| MIL Standards | MIL-STD-810G-516 - temperature ingress, and shock | |||

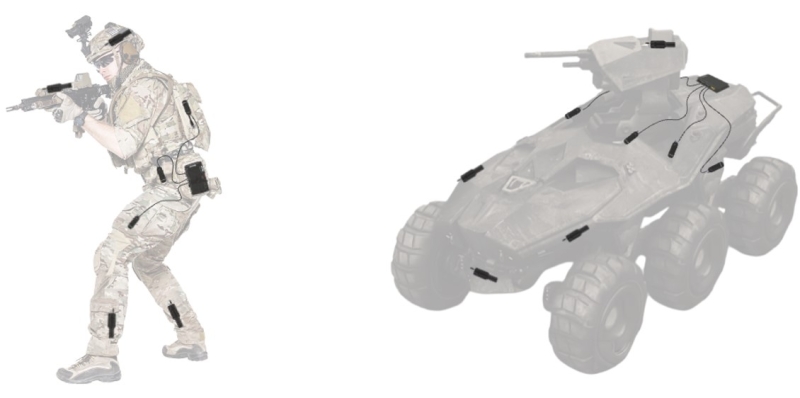

With a low-profile and lightweight form factor, incorporating distributed wireless and wired sensor modules, the eSoldier Power Monitoring System is ideal for capturing real electrical power data from Soldier-borne electronics during field simulations and exercise. The IP67 rated system is also rugged enough to meet the demands of logging data from vehicles and mobile equipment in the field.
| PART NUMBER | DESCRIPTION |
|---|---|
| 2100-00191 | Portable Data Acquisition Unit (PDAU) Includes PDAU, 32 GB microSD card, GPS antenna, Ethernet cable, and AC adapter. |
| 2100-00330-xxx | Wireless Sensor Module – Power Multiple options available with full-scale current input ranges from 100 mA to 8 A, unidirectional and bidirectional, and full-scale voltage input ranges of 6 V, 24 V, and 42 V. |
| 2100-00210-yyy | Wired Sensor Module – Power Multiple options available with full-scale current input ranges from 100 mA to 8 A, unidirectional and bidirectional, and full-scale voltage input ranges of 6 V, 24 V, and 42 V. |
| 2100-00310-033 | Wired Sensor Module – Temperature Sensor Built-in temperature sensor (RTD) and 1 input for external sensor (RTD, 2-, 3-, or 4-wire) |
| 2100-00310-034 | Wired Sensor Module – Temperature Input 2 inputs for external temperature sensors (RTDs, 2-wire) |
| 2100-00310-032 | Wired Sensor Module – Built-In 2-Axis Accelerometer |
| 2100-00310-031 | Wired Sensor Module – Digital Input |
| ACCESSORIES | |
| 2500-00950-xx | PDAU to Wired Sensor Module Cable, M5 connectors, lengths 1’, 3’, or 6’ (6' cable included with Wired Sensor Modules) |
| 2500-00480-xx | Power Sensor Module Input Cable, M12 to wire leads (included with Power Sensor Modules) |
| 2500-00951-xx | External Sensor Input Cable, M5 to wire leads (4), lengths 1’, 3’, or 6’ (3' cable included with Temperature and Digital Sensor Modules) |
| 2500-00952-xx | PDAU Ethernet Cable, M12 to RJ45, lengths 1', 3', or 6' (Included with PDAU) |
| 2500-00953-xx | GPS Active Antenna, magnetic base, length 1', 3', 6', or 16.4' (Included with PDAU) |
| 2500-00954-xx | AC adaptor for PDAU (M5 connector), 12 VDC (Included with PDAU) |
| 2500-00955-xx | Power/Battery Cable for PDAU, M5 to wire leads (4). Lengths 1', 3', or 6' |
